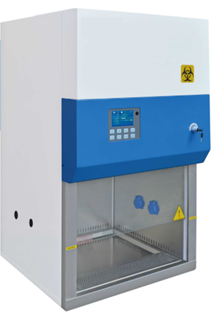

BSC-86A2 Biological Safety Cabinet (Class II)

Advantages

1.    Small dimension, save space.

2.    Centrifuge fan, speed adjustable; H14 HEPA filter.

3.    Motorized front window: the front window is motorized for convenient, one-hand operation.

4.    Audio and visual alarm: Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm.

5.    Time reserve function: this can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.

6.    Remote control: each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.

7.    Large LCD display: operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.

8.    With memory function in case of power-failure.

9.    Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.



MODEL

BSC-86IIA2

External Size(W*D*H)

700*650*1230 mm

Internal Size(W*D*H)

600*500*540 mm

Tested Opening

Safety height: 200mm   (8")

Max Opening

370 mm   (15")

Inflow Velocity

0.53±0.025 m/s

Down Flow Velocity

0.33±0.025 m/s

HEPA Filter

Two, 99.999% efficient at 0.3μm. Filter life indicator.

Front Window

Motorized. Two-layer laminated toughened glass   ≥5mm. Anti UV.

Noise

EN12469 ≤ 58 dB / NSF49 ≤ 61 dB

UV Lamp

15W*1

UV timer, UV life indicator, emission of 253.7   nanometers for most efficient decontamination

LED Lamp

8W*2

Illumination

≥1000Lux

Consumption

500W

Socket

Two, total load of two sockets: 500W

Display

LCD display

Control System

Microprocessor

Airflow System

70% air recirculation, 30% air exhaust

Visual and Audio alarm

Filter replacement, window over height, abnormal air flow velocity;   High filter pressure alarm

Material

Work Zone: 304 stainless steel

Material

Main Body: Cold-rolled steel with anti-bacteria   powder coating.

Work Surface Height

750mm with optional base stand

Power Supply

AC220V±10%, 50/60Hz; 110V±10%,60Hz

Standard Accessory

LED lamp, UV lamp*2, Remote control,   Waterproof sockets*2

Optional Accessory

Base stand, Universal caster with brake and leveling   feet, SS Water tap*1, SS Gas tap*1

Gross Weight without Base Stand

Carton:100kg

Gross weight with Base Stand

Carton:120kg

Package Size without Base Stand

Carton body:   760*800*1400mm

Package Size with Base Stand

Carton body with   base: 800*900*1450mm
