Features
-The main pathogens that cause common infectious diseases in pets are viruses, bacteria, mycoplasma and chlamydia, and parasites, which seriously endanger the health of pets.
-The cartridge of the H-RE detection system combines microfluidies,
nano-superparamagnetic beads nucleic acid extraction, fluorescence real-time PCR, enzyme and reagent critical state preservation technologies, which is pre-installed with the extraction and amplification reagents, so to realize the fully-closed automatic output from the sample to the gene detection result. It avoids the shortcomings of the conventional molecular detection,with false positive results, although with high sensitivity.
Advantages
1.Fully-closed Microfluidic Kit,No Contamination
H-RE cartridge with the unique design can control reagents flow in one direction. Owing to the microfluidic valves and sealed separate units, it avoids the contamination. So the system can be placed under the ordinary lab environment.
2.Real-time Fluorescent PCR Technology, High Sensitivity
It combines the specificity and sensitivity of PCR detection technology, which shortens the window period of disease detection, and all the extracted nucleic acids from the sample enter the reaction system, which greatly improves the sensitivity
3.From sample to report as less as in 1 hour
The whole process, including the extraction, purification, amplification and detection of sample, will be done in about one hour, which shortens the period of detection.
4.Multi-channel on-demand inspection,Timely diagnosis
One machine can detect four different samples or items at any time,it realizes the function of four individual machines.
5.Pathogen Quantitative Detection,Monitoring the treatment process
When the report is made,it prompts the concentration of the pathogen,so to assist in judging the degree of the disease,and it is also used wo monitor the treatment effect and guide the medication process.
6.Multiplex Kits, Multiple Combinations. Deeply concerned! (2 Multiplex Kits/3 Multiplex Kits/4 Multiplex Kits)
The same instrument,adding multiplex kits,multiple combinations of respiratory and digestive tract tests,meets various testing needs of veterinary and reduces laboratory budgets.
The available kits cover common detection items of pathogens.

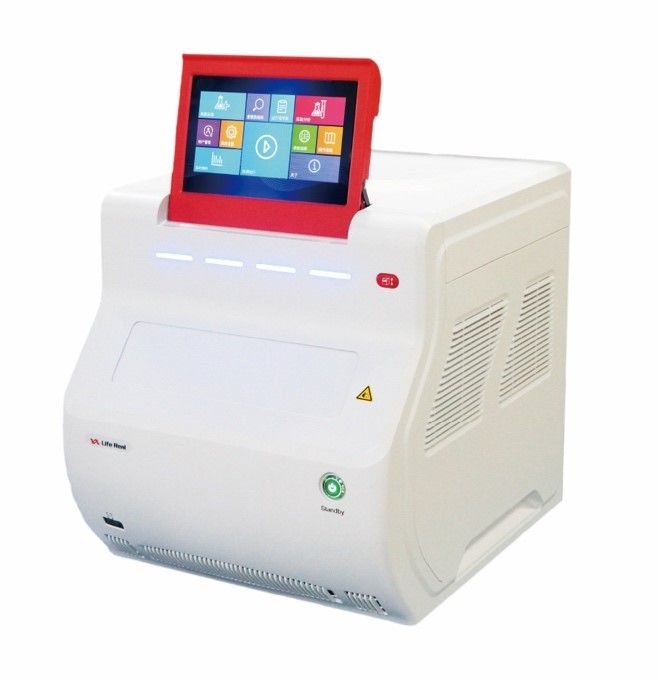

Technical Specifications
PARAMETERS | SPECIFICATIONS |
Model | AIGS-V |
Excitation light source | LED |
Detector | PMT photomultiplier tube |
Temperature control module | Semiconductor |
Block temperature range | 40°C-99.9°C |
Block temperature fluctuation | ≤±0.5°C |
Block temperature accuracy | ≤0.5°C |
Temperature display accuracy | 0.1°C |
Dyes | FAM、ROX、Cy5、HEX |
Display | 7-inch color touch screen |
Power supply | AC100-240V,50/60HZ,350W |
Data connector | USB,WIFI,Network cable |
Size | Length 380mm*Width 305mm*Height 343mm |
Net Weight | 16kg |
Single Target Detection Kit
PRODUCT NAME | DESCRIPTION |
Feline Parvovirus (FPX) Detection Kit | DNA |
Feline Coronavirus (FCoV) Detection Kit | RNA |
Feline Herpes Virus (FHV) Detection Kit | DNA |
Feline Calicivirus (FCV) Detection Kit | RNA |
Mycoplasma Feline (MF) Detection Kit | DNA |
Chlamydia Feline (CF) Detection Kit | DNA |
Feline Leukemia Virus (FeLV) Detection Kit | RNA |
Tox Gondii (ToxG) Detection Kit | DNA |
Leptospira (Lept) Detection Kit | DNA |
Barton’s Disease (Bar) Detection Kit | DNA |
Mycoplasma Haemophilus (Mha) Detection Kit | DNA |
Bordetella (BB) Detection Kit | DNA |
Babesia virus Detection Kit | DNA |
Canine Distemper Virus (CDV) Detection Kit | RNA |
Canine Parvovirus (CPV) Detection Kit | DNA |
Canine Coronavirus (CCov) Detection Kit | RNA |
Canine Herpes Virus (CHV) Detection Kit | DNA |
Rabies Virus (RV) Detection Kit | RNA |
Canine Adenovirus (CAH-1,hepatitis) Detection Kit | DNA |
Canine Adenovirus (CAH-2,respiratory tract) Detection Kit | DNA |
Canine Heartworm (DI) Detection Kit | DNA |
Multiplex Kits
DESCRIPTION | PRODUCT NAME |
2 Multiplex Kits | Feline Respiratory Duplex Test Kit (FCV+FHV) |
Feline Respiratory Duplex Test Kit 2 (MF+CF) | |
Feline Diarrhea Duplex Test Kit (FCoV+FPV) | |
Canine Diarrhea Duplex Test Kit (CCoV+CPV) | |
Feline Anemia Duplex Test Kit 2 (FIV+FeLV) | |
Canine Respiratory Duplex Test Kit 2 (CAV2+BB) | |
Feline Anemia Duplex Test Kit (FeLV+ToxG) | |
Common Duplex Test Kit (ToxG+Lept) | |
Canine Respiratory Duplex Test Kit (CDV+CHV) | |
3 Multiplex Kits | Feline Respiratory Triplex Test Kit (FCV+FHV+MF) |
Feline Respiratory Triplex Test Kit 2 (FHV+ MF+CF) | |
Feline Stomatitis Triplex Test Kit (FHV+FCV+FeLV) | |
Canine Respiratory Triplex Test Kit(CDV+CAV2+BB) | |
4 Multiplex Kits | Feline Respiratory Multiplex Test Kit (FCV+FHV+MF+CF) |
Canine Respiratory Multiplex Test Kit (CHV+CDV+CaH-1+BB) |
