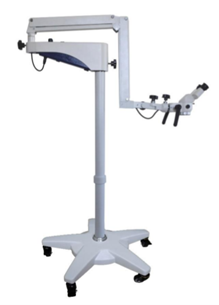

OM-102 Operating Microscope

Introduction

- OM Series Operating Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental,ophthalmology, gynecology, and surgery.

- OM-102 is mainly used for micro-operating in dental and ophthalmology surgery.



Technical Specifications

PARAMETER

SPECIFICATION

Observation Angle

45°tilted

Magnification of Observation

6X

Interpapillary Distance

50mm-80mm

Diopter

±5D

Focal Length of Objective

F=200mm and F=300mm two objectives

Magnification Changer

3-step: 0.6X, 1X, 1.6X

Total Magnification

3X, 5X, 8X, 4.7X, 7.5X, 12X

Linear Field

60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm

Fine Focusing Distance

10mm

Illumination

Coaxial illumination with 10W LED lamp light   source, brightness

adjustable, illumination>30000lx

Lamp

10W LED lamp

Filter

Build-in green and yellow filter

Balancing arm

2-part arm with universal joints

Floor stand

2-part column fitted on the five-star base with   casters

Power supply input

AC100V-240V, 50-60HZ

Power supply adapter

DC12V3A, 36W

Optional Accessories

Beam splitter, Video camera adapter, Demonstrator,   Camera

(U3CMOS03100KPA, WUCAM0720PA, FHD2100, HD200),   Monitor

(S24R352FHC), Objective F=250mm & F=400mm, Wall   mount

bracket, Monitor mount (GM112B, DS312B)
