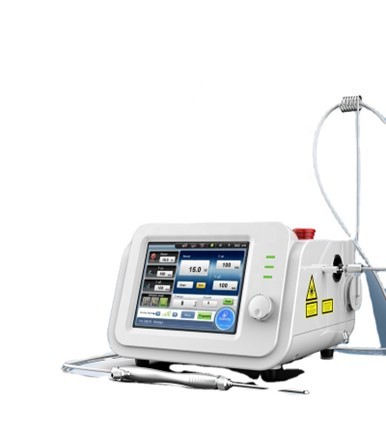

HDL-04/04D Diode Laser Surgery Therapy

Features

1. New friendly used protocol

2. Big color touch screen

3. Output power calibration at the end of fibers

4. Preprogrammed and customizable parameters

5. Compact & lightweight, easy to transport

6. Quick connector battery box

7. Highly integrated and modular design

8. New design inside to make maintenance easy and low cost

9. Scope of application: Dentistry, Lipolysis (Laser fat burning), EVLT (Endovenous laser treatment), Spider Vein, ENT, Dermatology, Orthopedics, PLDD(Percutaneous Laser Dsic Decompression), Neuro surgery, Gynaecology, General surgery, Therapy, Veterinary.



Technical Specifications

PARAMETER

SPECIFICATION

Model

HDL-04/04D

HDL-04D+

Wavelength

810nm / 980nm

810nm + 980nm

Maximum Power

15w

15w + 15w

Operation Mode

CW, Single, Repeat Pulse

Pulse Duration

10μs-3s

Repetition Rate

0.2Hz-20KHz

Transmission system

Contact: fibers of 400μm, 600μm and 1000μm with SMA905 connector;

Non-contact: fibers and tips

Aiming Beam

Red Diode Laser of 650nm, 4mW (max), adjustable   brightness

Cooling

Air cooling and TEC

Control Mode

Touch Screen, 8 True Color

Laser Class

4

Power supply

100-240V, 50-60Hz, 400VA

Safety classification

Class I Type B

Dimension and weight

270*200*180mm, 3.8kg
