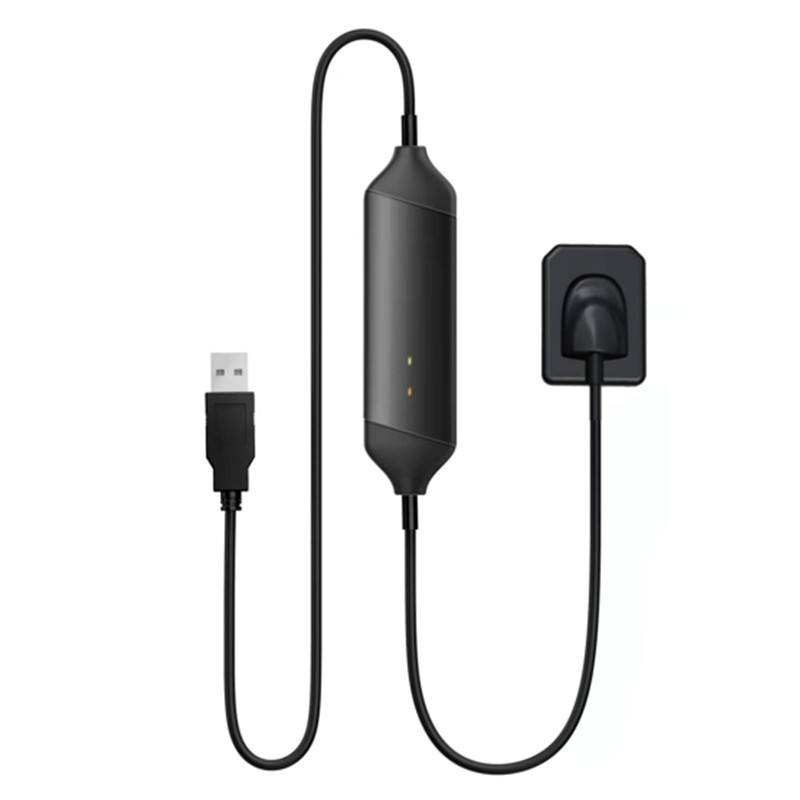

OR750 Oral Digital Image System

I. Technical Specifications

Chip Type: APS CMOS

Pixel Size: 18,5um

Dimension: 45x32.5x6mm

Active Area: 35x26mm

Active Pixel Array: 1402x1888mm

Image Pixel: 1402x1888mm

Voltage (through USB connection): 5.0 V±0.5V

Electricity Current (through USB connection): ≤500mA Power: ≤1W

Digitization: 12/14/16 bit

Maging Time: 3-4s

Resolution: 27lp/mm

Signal Output: USB
