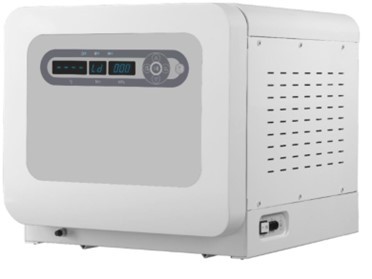

29L-V/45L-V (LED) Table Type Pulse Vacuum Steam Sterilizer (Touch Screen)

Characteristics

l  Touch screen.

l  Suitable for different types instruments: Surgical instruments, dental instruments, glass wares, injection units and other objects of compression resistance and hot steam resistance.

l  Double lock system- mechanical lock with air lock system.

l  Six layer’s new structure chamber, creating new chamber structure:

1. The chamber adopts six layers' structure, using the special shaping finish drawing technology, dusting and polishing. It has super-strong pressure-bearing properties, and pass 60000 times fatigue life testing, the outer layer adopts the superfine micropore foaming technique.

2. As the tray rack can rotates to 90 degrees, 5 trays can be used for placing instruments.

l  Two condensers, faster cooling, prolongs life time.

l  Safety valve: release pressure overload, and restores idle chamber pressure when the chamber is over-pressured.

l  Air filter: filter airborne impurities into the chamber to prevent contamination.

l  Big capacity open tank:

1.     Open tank, easy-to-clean.

2.     Built-in water quality sensor monitors water quality, reduces machine failure rate, and prolongs machine life time.

l  Two types of record (dual recording)

1. USB Master controller stores 2,000 fresh cycles; the data can be downloaded via USB. You can check and print all the records with a computer.

2. Micro-Printer (Optional) Prints cycle data when the cycle ends.



Technical Specifications

PARAMETER

29L-V

45L-V

Voltage (V/Hz)

230/50

230/50

Power (W)

2500

3300

Capacity (L)

29

45

Chamber size (mm)

319×420

319×620

Product size (mm)

2.6KW

535x850x505

N. W (KG)

80

92
